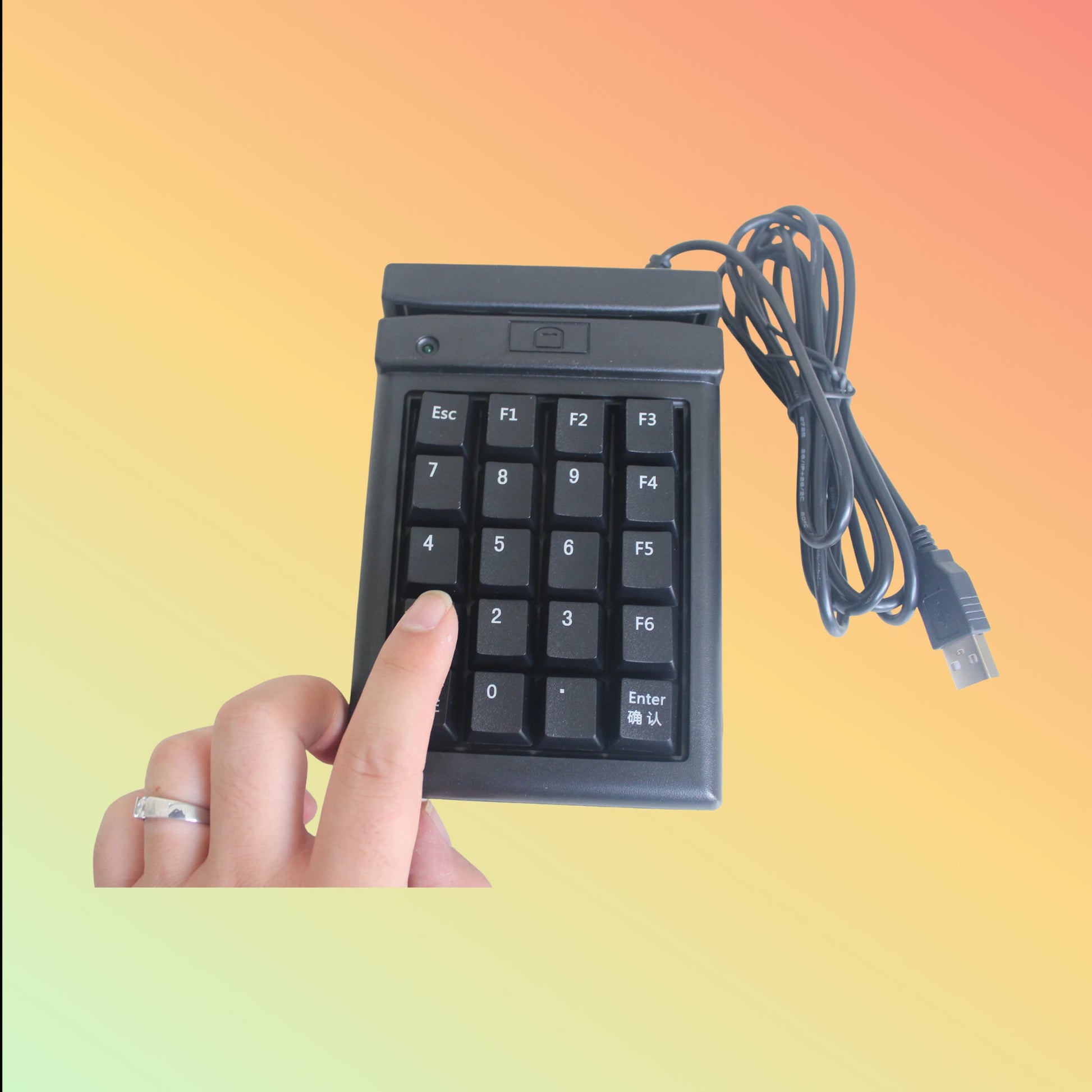

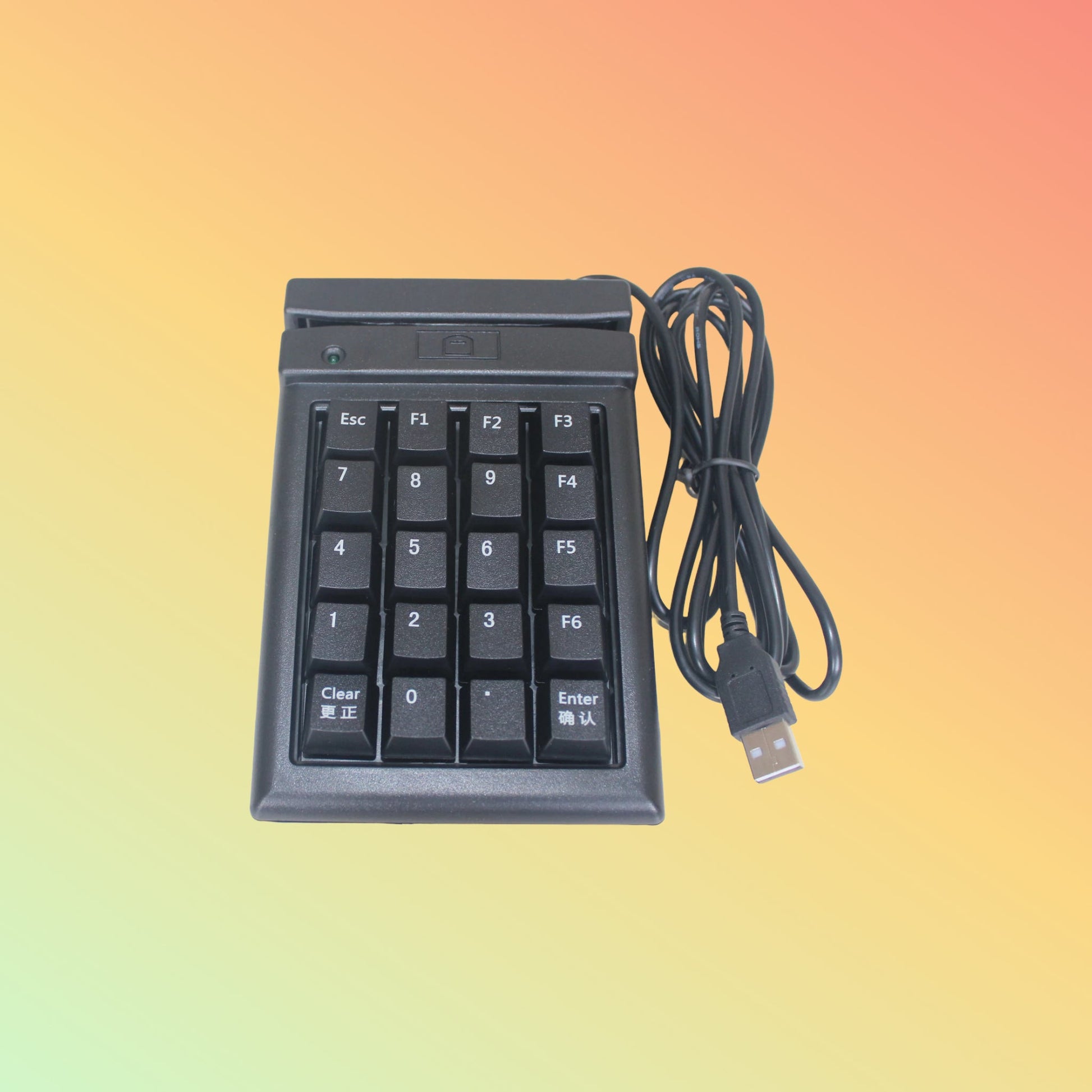

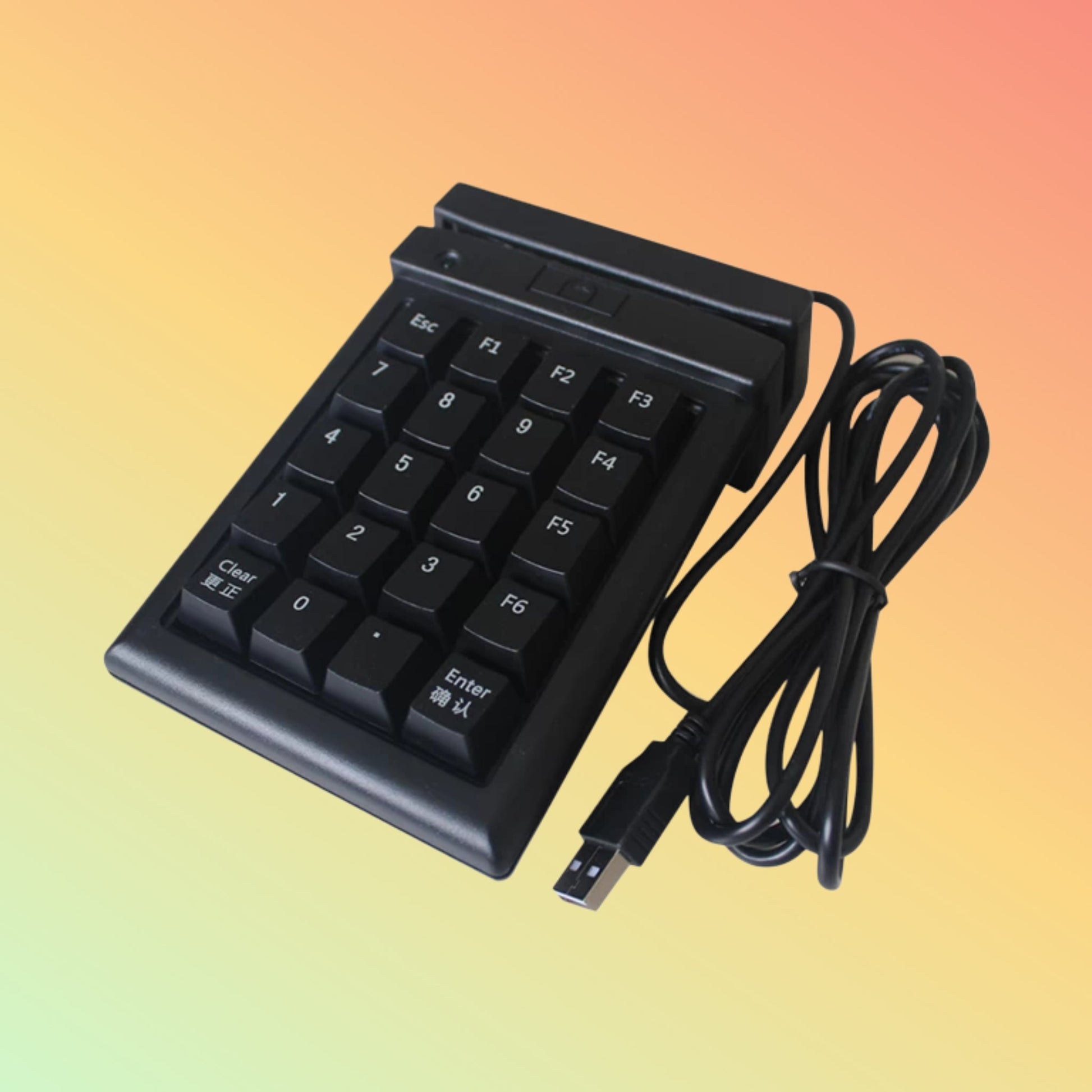

Ocom (KB20R) 20keys Key Pad with Triple Tracks Magnetic Card Reader

Ocom (KB20R) 20keys Key Pad with Triple Tracks Magnetic Card Reader

Dhs. 0.00 AED
Dhs. 0.00 AED
Sale Sold out

Compact 20-key keypad with built-in 3-track magnetic card reader. Ideal for POS, kiosk logins, banking & secure access. USB or RS232 options.

✅ Overview

The Ocom KB20R is a space-saving 20-key programmable keypad integrated with a Triple Track Magnetic Stripe Reader (MSR). It’s a versatile solution for secure data entry, user authentication, card-based login, and retail checkout systems where compact size and multi-functionality are crucial.

✅ Product Description

Engineered for high-security, high-speed workflows, the KB20R merges a programmable keypad and 3-track MSR into a compact, durable form factor. Ideal for POS counters, financial terminals, kiosk access points, and secure logins, it enables card swiping and PIN or data entry through a single device.

With USB and RS232 interface options, it integrates smoothly into modern and legacy systems. Programmable keys support macros, shortcuts, or custom commands. Durable mechanical switches ensure long service life, even under constant use in commercial environments.

✅ Key Features

  • 20 mechanical keys, fully programmable

  • Integrated Triple Track Magnetic Stripe Reader (Tracks 1/2/3)

  • High-accuracy card reading in both directions

  • Macro, shortcut & key combo support

  • USB HID & RS232 interfaces for broad compatibility

  • Compact desktop or kiosk-mountable design

  • Durable ABS housing with tactile key feedback

  • Supports secure user authentication or transactions

✅ Specifications

  • Key Count: 20

  • Card Reader: 3-track MSR (Tracks 1, 2, 3)

  • Swipe Direction: Bi-directional

  • Interface Options: USB HID / RS232

  • Key Switches: Mechanical, >10 million actuations

  • Power Supply: USB-powered or 5V external (RS232)

  • Material: Industrial ABS casing

  • Dimensions: 155 × 90 × 38 mm

  • Weight: ~350g

  • Certifications: CE, FCC, RoHS

✅ Supported OS / Applications / Industries

  • Applications:

    • POS systems & checkouts

    • Card-based login terminals

    • Secure kiosk authentication

    • ATM & banking verification

    • Public sector ID validation

  • Industries:

    • Retail & Hospitality

    • Banking & Finance

    • Government Services

    • Healthcare

    • Transportation & Ticketing

  • System Compatibility:

    • Supports Windows, Linux, Android

    • Integrates with POS, CRM, or custom kiosk software

✅ Benefits & Compatibility

  • Combines PIN input + card reading in one compact unit

  • Ideal for tight-countertop or embedded kiosk installations

  • Supports secure user login, loyalty card verification, or transactions

  • Plug-and-play installation or software-based configuration

  • Durable design for daily commercial usage

✅ Purpose of Use

The KB20R is built for secure data entry and identity verification in space-limited environments. It is perfect for checkout counters, employee authentication systems, kiosks, and financial terminals that demand compact functionality and accuracy.

✅ How to Use

  1. Connect to host device via USB or RS232

  2. Program keys via optional configuration software

  3. Swipe card using MSR (Tracks 1, 2, 3 supported)

  4. Use keypad to enter PIN or system commands

  5. Start secure transactions or login operations

✅ Packaging / Weight / Dimension

  • Net Weight: ~350g

  • Package Size: 180 × 120 × 50 mm

  • Gross Weight: ~500g

  • Box Includes: KB20R keypad, USB/RS232 cable, user manual, optional configuration utility

✅ Warranty and FAQs

Warranty: 12-month limited warranty

FAQs:
Q: Can it read all three magnetic tracks on a card?
A: Yes — Tracks 1, 2, and 3 are supported by default.

Q: Is the keypad customizable for PIN or menu navigation?
A: Yes — all keys are fully programmable using utility software.

Q: Is this device compatible with Android tablets?
A: Yes — via USB OTG, using HID mode.

✅ Performance, Quality, Durability, and Reliability

The KB20R delivers stable, secure, and fast input with a rugged design and accurate swipe reading. It’s built to withstand commercial-grade workloads, making it ideal for high-security use cases.

✅ Best Price Guarantee

NEOTECH offers UAE’s best pricing on the Ocom KB20R. If you find it cheaper, we’ll match it — and include full configuration support.

✅ Shop Today & Receive Your Delivery Across the UAE!

Available for delivery across Dubai, Abu Dhabi, Sharjah, Ajman, and all Emirates. Most orders ship within 2–3 business days from confirmed stock.

✅ Request for Customer Reviews and Testimonials

Using the KB20R at your business? Share your feedback on how it’s helped enhance secure logins or retail transaction efficiency.

✅ After Sales Support

We provide complete support, including driver installation, macro mapping help, card reader testing, and live troubleshooting.

✅ Get in Touch

Need help comparing KB20R vs KB50 or integrating it into your kiosk? Reach out — our experts are ready to guide you.

✅ Stock Availability

The KB20R is in regular stock. For urgent deployment or high-volume orders, please confirm real-time availability with our team.

✅ Disclaimer

Specs and visuals are for reference. Configurations may vary by batch. Confirm card reader and interface options before purchasing.
