Mikrotik S-3553LC20D - Two SFP (1.25G) module kit

Optimize your network setup with the MikroTik S-3553LC20D, a two-piece SFP module kit designed for reliable, bi-directional data transmission over a single fiber strand. Purchase today at NEOTECH.

Overview

The MikroTik S-3553LC20D is a kit containing two SFP (Small Form-factor Pluggable) modules, specifically designed for bi-directional data transmission. This set enables high-speed communication over a single fiber strand, effectively doubling the capacity of the fiber by separating the transmission wavelengths.

Product Description

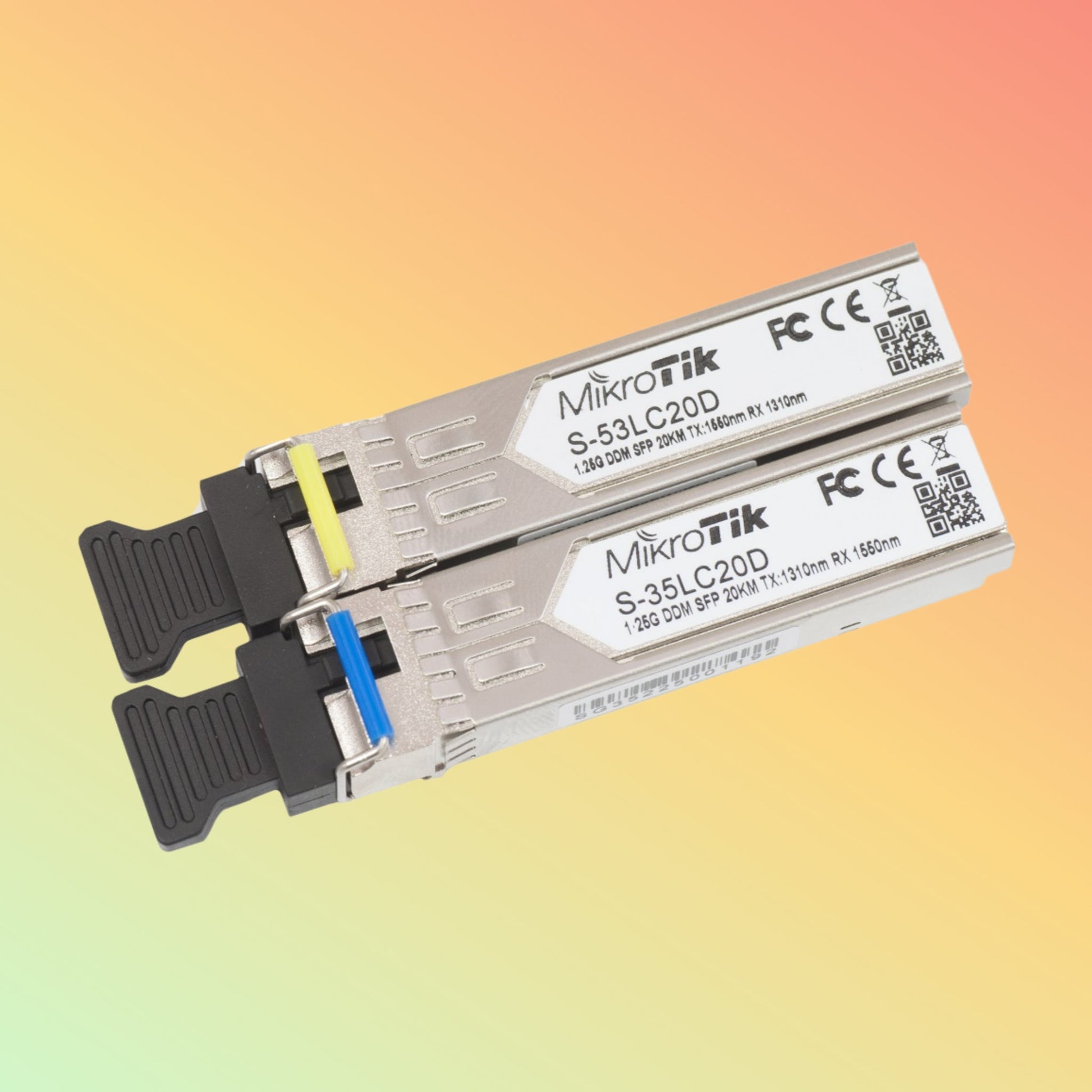

This kit includes one S-35LC20D module, which transmits data at 1310nm and receives at 1550nm, and one S-53LC20D module, which transmits at 1550nm and receives at 1310nm. Each module supports data rates up to 1.25 Gbps and can operate over a distance of up to 20 kilometers. The use of two different wavelengths in opposite directions prevents interference, allowing for stable and efficient data transfer.

Key Features

• Bi-Directional Transmission: Utilizes a single fiber strand for both transmitting and receiving data, reducing fiber usage and infrastructure costs.
• Dual Wavelength: Each module operates on a different wavelength to avoid interference and maximize bandwidth.
• High Data Rate: Supports up to 1.25 Gbps, suitable for broadband internet and other high-speed network requirements.
• Long Reach: Effective for distances up to 20 km, ideal for extended network setups such as campus networks and metropolitan area networks.
• LC Connectors: Standard LC type connectors provide a secure and reliable connection.

Product Quality and Performance

The MikroTik S-3553LC20D modules are built with precision and quality, ensuring high performance in various networking environments. These modules are rigorously tested to meet MikroTik's standards for network reliability and efficiency.

Specifications

• Model: MikroTik S-3553LC20D
• Data Rate: 1.25 Gbps
• Wavelength: S-35LC20D: Tx 1310nm / Rx 1550nm, S-53LC20D: Tx 1550nm / Rx 1310nm
• Distance: Up to 20 km
• Connector Type: LC duplex
• Compatible Fiber: Single-mode

Purpose of Use

• To connect two network points over a single optical fiber by using two different wavelengths in opposite directions.
• To expand network reach without laying additional fiber, especially in areas where fiber resources are limited or costly.
• Suitable for use in both urban and rural network deployments where long-distance fiber optic communication is needed.

How to Use

1. Insert the S-35LC20D module into an SFP port on the first device, and the S-53LC20D module into an SFP port on the second device.
2. Connect both modules using a single-mode fiber cable with LC connectors.
3. Configure each network device to recognize and utilize the installed SFP modules.
4. Test the connection to ensure that data is transmitting and receiving correctly over both wavelengths.

Supported Applications

• Long-distance networking applications in governmental, educational, and corporate sectors.
• Fiber-to-the-home (FTTH) services, where a single fiber is used to service multiple premises.
• Backhaul connections for cellular networks, requiring high reliability and bandwidth.

Benefits & Compatibility

The S-3553LC20D provides a cost-effective and efficient solution for managing long-distance fiber optic connections. It is compatible with any MikroTik router or switch that has SFP ports, as well as with other manufacturers' equipment that supports standard SFP modules.

Warranty and FAQs

NEOTECH provides a comprehensive warranty for the MikroTik S-3553LC20D, covering any defects in materials or workmanship. For more detailed warranty information and FAQs, please contact NEOTECH customer service.

Packaging/Weight/Dimension

The kit comes packaged with both SFP modules and necessary handling instructions. The packaging ensures the modules are protected during transport. Specific weight and dimension details are available upon request.
